安卓自定义控件一个指示用的箭头

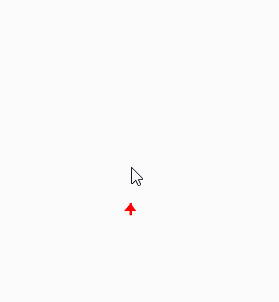

需求：随着手指滑动，出现一个指示用的箭头，向这样的

画一条线很简单，用onTouchEvent()即可，难点在画那个小箭头上面，看着简单，画起来各种角度、坐标系，画的欲仙欲死的···

首先确定2个点的位置，并传给自定义控件arrowView

    private ArrowView av;
    private float startX;
    private float startY;
@Override
    public boolean onTouchEvent(MotionEvent event) {
        int action = event.getAction();
        switch (action) {
            case MotionEvent.ACTION_DOWN:
                //记下按下去的初始位置，actionbarHeight和statusHeight是toolBar和状态栏的高度
                startX = event.getX();
                startY = event.getY()-actionBarHeight-statusHeight;
                break;
            case MotionEvent.ACTION_MOVE:
                float moveX = event.getX();
                float moveY = event.getY()-actionBarHeight-statusHeight;
                av.clear();                                 //每次移动的时候都先清空一次path
                av.setPath(startX,startY,moveX,moveY);  //将2个点的位置传给arrowView
                break;
            case MotionEvent.ACTION_UP:
                //do something
                }
                break;
        }
        return super.onTouchEvent(event);
    }

ArrowView来了

package com.aidebar.intentdemo;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.util.AttributeSet;
import android.view.View;

/**
 * @author xzj
 * @date 2016/10/26 14:59.
 */

public class ArrowView extends View {
    private Paint paint;
    private Path path;
    private Paint arrowPaint;
    private Path arrowPath;
    private float startX;
    private float startY;
    private float endX;
    private float endY;

    public ArrowView(Context context) {
        super(context);
        init();
    }

    public ArrowView(Context context, AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    public ArrowView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }

    private void init() {
        paint = new Paint();
        arrowPaint = new Paint();
        arrowPaint.setAntiAlias(true);
        arrowPaint.setColor(Color.RED);
        arrowPaint.setStrokeWidth(5);
        arrowPaint.setStyle(Paint.Style.FILL);//箭头是个实心三角形，所以用fill
        arrowPath = new Path();
        path = new Path();
        paint.setAntiAlias(true);
        paint.setColor(Color.RED);
        paint.setStrokeWidth(5);
        paint.setStyle(Paint.Style.STROKE);
    }

    @Override
    protected void onDraw(Canvas canvas) {
        setArrowPath();
        canvas.drawPath(path, paint);
        canvas.drawPath(arrowPath, arrowPaint);
    }

    /**
     * 画箭头
     */
    public void setArrowPath() {
        double H = 18; // 箭头高度
        double L = 13.5; // 底边的一半

        double angle = Math.atan(L / H); // 箭头角度
        double arrowLength = Math.sqrt(L * L + H * H); // 箭头的长度
        //箭头就是个三角形，我们已经有一个点了，根据箭头的角度和长度，确定另外2个点的位置
        double[] point1 = rotateVec(endX - startX, endY - startY, angle, arrowLength);
        double[] point2 = rotateVec(endX - startX, endY - startY, -angle, arrowLength);
        double point1_x = endX - point1[0];
        double point1_y = endY - point1[1];
        double point2_x = endX - point2[0];
        double point2_y = endY - point2[1];
        int x3 = (int) point1_x;
        int y3 = (int) point1_y;
        int x4 = (int) point2_x;
        int y4 = (int) point2_y;
        // 画线
        arrowPath.moveTo(endX, endY);
        arrowPath.lineTo(x3, y3);
        arrowPath.lineTo(x4, y4);
        arrowPath.close();
    }
    // 计算
    /**
     * @param diffX  X的差值
     * @param diffY  Y的差值
     * @param angle    箭头的角度（箭头三角形的线与直线的角度）
     * @param arrowLength 箭头的长度
     */
    public double[] rotateVec(float diffX, float diffY, double angle, double arrowLength) {
        double arr[] = new double[2];
        // 下面的是公式，得出的是以滑动出的线段末点为中心点旋转angle角度后,线段起点的坐标，这个旋转后的线段也就是“变长了的箭头的三角形的一条边”
        //推导见注释1
        double x = diffX * Math.cos(angle) - diffY * Math.sin(angle);
        double y = diffX * Math.sin(angle) + diffY * Math.cos(angle);
        double d = Math.sqrt(x * x + y * y);
        //根据相似三角形，得出真正的箭头三角形顶点坐标，这里见注释2
        x = x / d * arrowLength;
        y = y / d * arrowLength;
        arr[0] = x;
        arr[1] = y;
        return arr;
    }
    public void setPath(float startX, float startY, float endX, float endY) {
        path.moveTo(startX,startY);
        path.lineTo(endX,endY);
        this.startX = startX;
        this.startY = startY;
        this.endX = endX;
        this.endY = endY;
        invalidate();
    }
    public void clear() {
        path.reset();
        arrowPath.reset();
    }
}

注释1：前方高能，初中数学老师来临

一个点坐标为（x1,y1),与x轴夹角为A，与原点距离为r，那么

x1 = r *cosA ————–①

y1 = r *sinA ————–②

以原点为圆心，将该点旋转B度后，得到点（x2,y2)
x2 = r *cos(A+B)= r *(cosAcosB - sinAsinB)
y2 = r *sin(A+B)= r *(sinAcosB + cosAsinB)
将①②式带入可得：
x2 = x1cosB - y1sinB
y2 = y1cosB + x1sinB

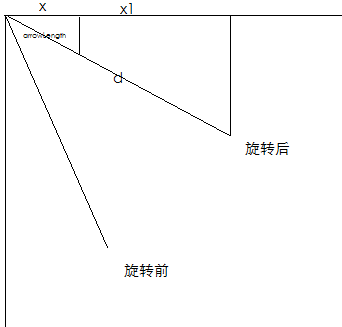

注释2：前方高能，初中数学老师又来了

x/x1=arrowLength/d
x = x1 / d * arrowLength
